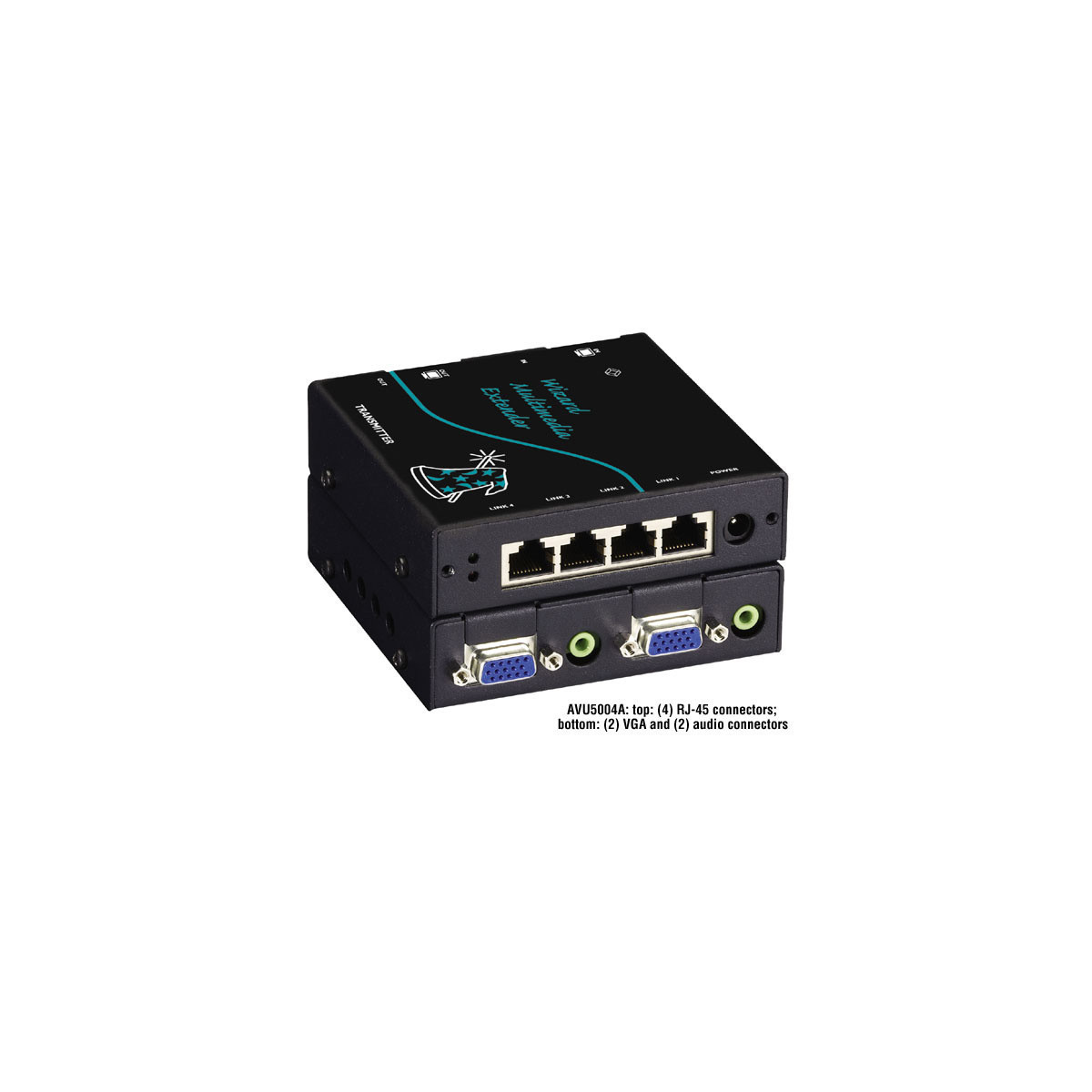

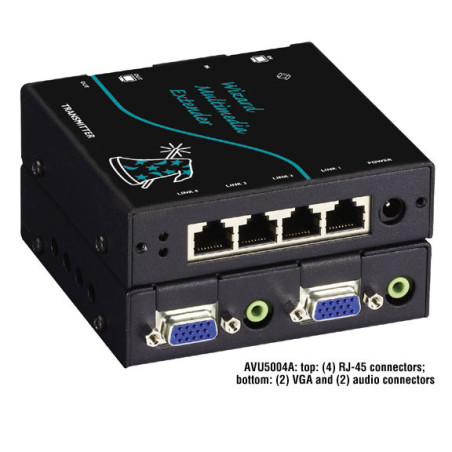

AVU5004A

To rackmount up to 16 of the transmitters, order:

• Wizard Multimedia Extender Rackmount Chassis (AVU5000A)

Then order a plate for every unit you plan to mount:

• Wizard Multimedia Extender Universal Plate (AVU5002)

.

Other Wizard Multimedia Extender options:

We offer a single video/stereo audio transmitter model (AVU5001A) to directly feed a single receiver. You can also order the AVU5001A packaged with our dual video/stereo audio receiver (AVU5011A) in a complete extender kit (AVU5010A).

Pair each CATx port on this quad transmitter with either the dual video/stereo audio receiver (AVU5011A) or our receiver with built-in skew compensation and a CATx daisy-chain port (AVU5111A-R2). The latter model is recommended for CAT5e or higher cable extensions that are longer than 328 feet (100 m). We also recommend the AVU5111A-R2 for CAT5e or higher applications in which you need to extend higher resolutions. For assistance setting up a multichannel Wizard Multimedia Extender application.

Maximum link distance for cascade connections:

Number of cascade connections (in a branch) / overall length of links for a branch*

0 / 1000 ft. (305 m)

1 / 800 ft. (244 m)

2 / 650 ft. (200 m)

3 / 600 ft. (183 m)

* From the transmitter to farthest receiver.
